Robust

NovoFire® by Novoferm

NovoFire® aluminium profile frames are the perfect solution for modern property construction. With their elegant surface finish, timeless design and numerous options, they offer virtually limitless possibilities for ambitious architects and planners when designing transparent fireproof and smokeproof seals in building interiors. NovoFire® is available in 3 configurations: NovoFire® RS (non-fire rated, smokeproof), NovoFire® T30 (EI 30 fire rating) and NovoFire® T90 (EI90 fire rating). Ideal for use in offices, shopping centres, airports, hotels, hospitals, schools and other similar public buildings; GLAS-DOR is manufactured in the UK and available made-to-measure.

Request Quote Download Brochure

Product Specification

INTRODUCING NOVOFIRE® ALUMINIUM GLAZING SYSTEMS FOR DOORS AND WALLS

NovoFire® is available in 3 configurations: NovoFire® RS (non-fire rated, smokeproof), NovoFire® T30 (EI 30 fire rating) and NovoFire® T90 (EI90 fire rating).

KEY FEATURES

Smokeproof to DIN 18095
Fire resistance classes T30/F30 (EI30) or T90/F90 (EI90) to DIN 4102
Burglar resistance to EN 1627 for T30 (EI30) doors in classes RC1 or RC2, optionally in RC3
Door closer, electric opener or anti-panic functions to EN 179 or EN 1125 can be integrated
Available with “Anodized Alumnium” finish for stainless steel look
Only non-fire rated or T30/F30 (EI30) is tested for external use.

Technical Data

SYSTEM DESCRIPTION

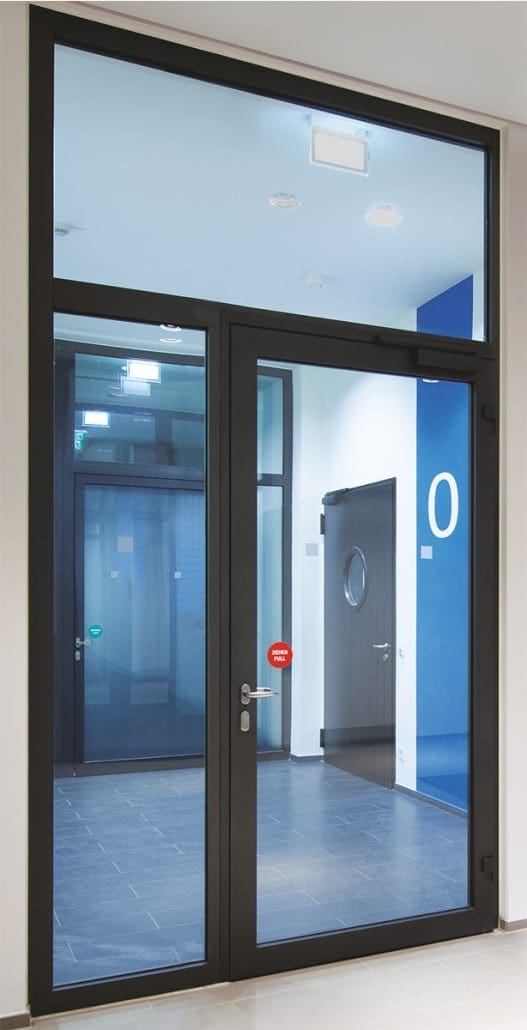

Aluminium door element made of single chamber hollow profiles. In combinations with an automatically adjustable floor seal, this door is tested for smoke protection in accordance with DIN 18095. Visible width of frame and seal: 150mm, pedstal height: 98 – 238mm, installation depth: 74mm (EI30) or 90mm (EI90). The inactive leaf on a double door unity must not be less than 500mm. The elements are pre-assembled for brushing assembly or weld-on fitting.

HARDWARE

Mortice lock, pre-assembled for profile cylinder, handle or knob levers with oval rosette plates in aluminium, stainless steel or plastic. The inactive leaf is fixed by a rebate retracting bolt at the top. An anti-panic function that complies with EN 179 or EN 1125 is also possible as an alternative. Slide channel upper door closers in compliance with EN 1154, e.g. GEZE TS 5000/Dorma TS 93, integrated door closing systems (Dorma ITS 96), swing door operation in accordance with DIN 18263/DIN 18650.

HINGES

Two 2-part aluminium bolt-on hinges on each leaf, three-dimensionally adjustable; we recommend that you use three on doors with swing door operation. Roller hinges are available instead of screw-on hinges on request.

SURFACE

Anodised, stainless steel finish, or powder coated (RAL classic of choice).

GLAZING

Laminated (LSG) or tempered (TSG) safety glass. Glazing options and panel fillings, profiles with one-sided glass rebate and glass holding strips on the opposite side of the hinges, dry glazing with EPDM seals.

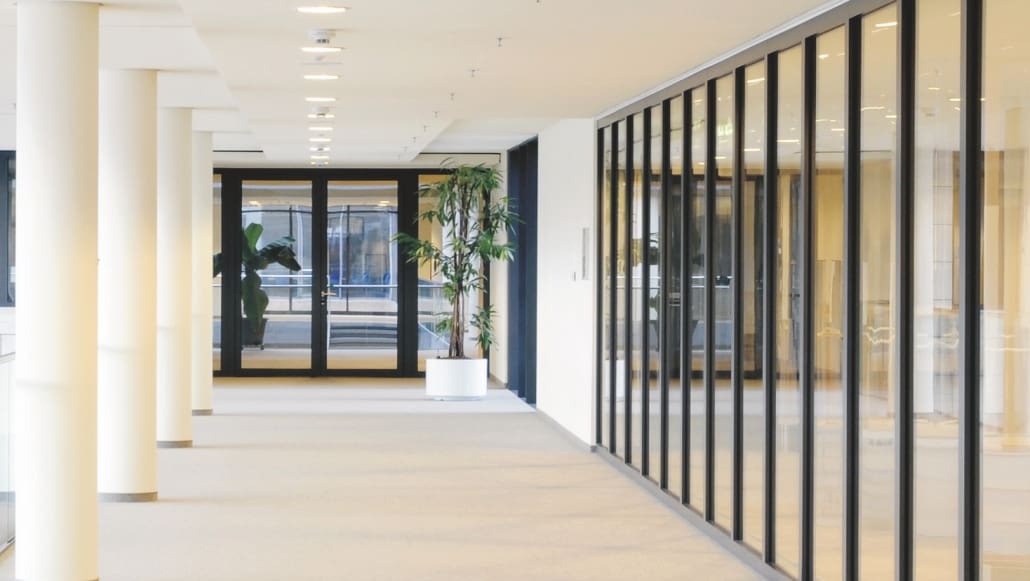

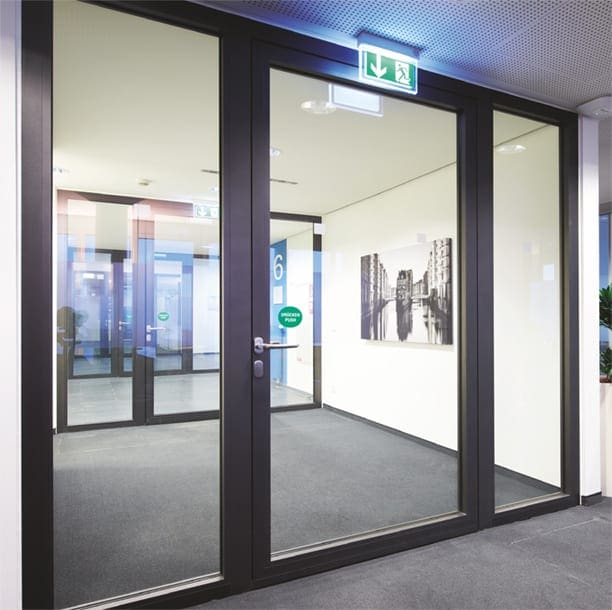

FIXED GLAZING

Surface flush connection to the door, stand-alone versions are also possible, slanted versions or T connections are optionally available.

KEY FEATURES

Smokeproof to DIN 18095

Fire resistance classes T30/F30 (EI30) or T90/F90 (EI90) to DIN 4102

Burglar resistance to EN 1627 for T30 (EI30) doors in classes RC1 or RC2, optionally in RC3

Door closer, electric opener or anti-panic functions to EN 179 or EN 1125 can be integrated

Available with “Anodized Alumnium” finish for stainless steel look

Only non-fire rated or T30/F30 (EI30) is tested for external use.

Download Installation Guide
