OUTA-DOR
INDUSTRY LEADING EXTERNAL STEEL DOORS OUTA-DOR sets the standard for external steel doors, with an industry leading specification, up to 10 years anti-corrosion guarantee and 5 year mechanical warranty. Available made-to-measure in a wide range of heights and widths to suit any requirement, OUTA-DOR can be tailored to you – making it the perfect addition to your project. A £2m investment in new machinery has made the process of purchase and manufacture much quicker and has increased our overall capacity. This means less of a wait for your product, while maintaining the same high level of quality control and value for money. Ideal for use in offices, shopping centres, airports, hotels, hospitals, schools and other similar public buildings; GLAS-DOR is manufactured in the UK and available made-to-measure.Product Specification
STRONG, VERSATILE & COST EFFECTIVE
Manufactured from corrosion resistant Magnelis© steel as standard, OUTA-DOR is well protected from the elements. We manufacture using 1.2mm Magnelis© steel sheets as standard, but this can be upgraded to 1.5mm or 2.0mm sheets to increase the toughness of the door skin.
The versatility of OUTA-DOR steel doorsets makes them suitable for use in a wide range of external applications – from schools & offices, to multi-storey car parks and supermarkets. The range of available sizes, panels, hardware, colours and pattern designs means OUTA-DOR is perfect for domestic, commercial and industrial settings.
All our doorsets are supplied fully assembled with hardware fitted, which, when combined with our adjustable fixing feet and variable sub-frame, drastically reduces the installation time on site – adding value to a project. The single fix design of our doors can offer great saving costs when priced against overall installation times for timber doors, and the inherent durability of steel means that in areas of high traffic or potential abuse, the ‘whole life’ cost of a steel doorset significantly outweighs that of a timber dooset.
Technical Data
FIRE DOORS
OUTA-DOR is available as a fire rated doorset, available latched or unlatched in 3 fire resistance classifications: 60 mins, 120 mins and 240 mins. Sizes and hardware constraints vary between each classification. These are tested to EN 16034, allowing them to be CE marked as fire-resistant external doorsets.
FIRE EXIT DOORS
We can fit OUTA-DOR steel doors with a range of panic hardware in order to comply with BS EN 1125 and BS EN 179. We can also fit outside access devices to provide practical, controlled and durable access to secure premises.
THERMAL ‘U’ VALUES
OUTA-DOR steel doors come with a self-supporting resin impregnated honeycomb core as standard. However, Mineral Wool, Polyurethane or Solid Timber infill cores are optionally available.
Depending on the door construction, infill values of 3.2 – 1.6 w/m²k are obtainable:
- Honeycomb: 3.1 w/m²k
- Solid Timber: 2.9 w/m²k
- Mineral Wool (with steel strengtheners): 1.6 w/m²k
- Mineral Wool (lamella): 1.6 w/m²k
- Polyurethane: 1.6 w/m²k (specialist applications only)
FRAMES
As all of our doors are made-to-measure, we have a variety of frame types available to suit your requirements. These include our standard OUTA-DOR frame – Type C – as well as optional frames Types A, B and D.
- A frame allows the aperture to be finished with an architrave on the inside and outside of the opening.
- B frame provides and architrave to either the internal or external face of the opening.
- C frame is a standard 95mm deep single rebate frame for installation into brickwork or steel apertures.
- D frame is a double rebate frame allowing the door to be installed into wider brickwork/blockwork structures, or to allow the frame to span a cavity.
All frames are supplied with adjustable fixing feet allowing the frame to be accurately installed – even in openings which are out of square. As standard, type C and D frames are supplied with a variable sub-frame to accommodate for a site tolerance of +/- 30mm. This ensures a quick, hassle-free installation.

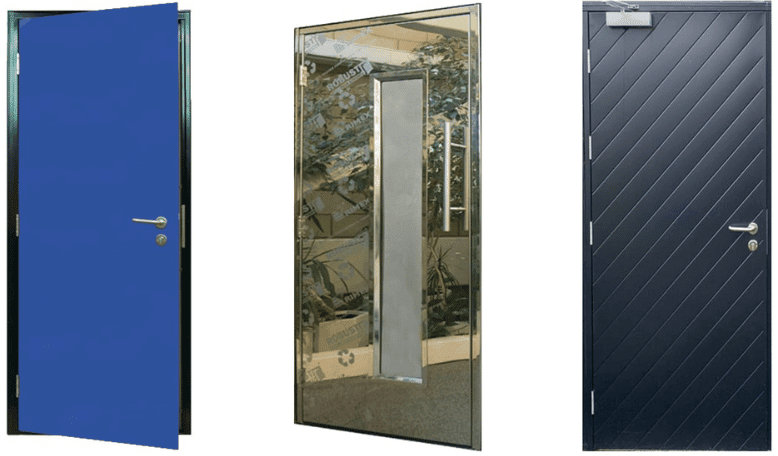

POWDER COATING, PATTERNS & STAINLESS STEEL FINISHES
OUTA-DOR is available polyester powder coated as standard in one of 50 colours. Alternatively, doors can be polyester powder coated in any BS or RAL colour*.
A stainless steel finish is also option, with brushed, polished and patterned finishes available. Alternatively, our external doors are available unfinished for site finishing.
Also, a selection of architectural design patterns are available, such as Tongue and Groove, Chevron, Georgian panel, alongside a standard Flat finish. Please contact our sales team for more information.
*Additional set up cost might be incurred.
KEY FEATURES
Fire resistance up to 2 hours – EN 1634-1
Fire-resistant sliding glazed doors up to 30 mins
Available tested to PAS 24*
Burglary and bullet resistance
Door leaf and frame profiles available 30, 50 and 85 mm
Narrow 20mm and wide profiles available: 85, 130, 180 or 260 mm
Finger trap gasket tested to EN 1634-1
*Available tested to PAS 24 and approved by Secured by Design in certain configurations. Speak to our sales team for more information
